Java / Gradle

Using EclipseStore persistence with Micronaut

Learn how to use EclipseStore as a high-performance persistence layer.

Tim Yates, Sergio del Amo
On this guide
In this section

Getting Started

In this guide, we will create a Micronaut application written in Java.

You will use EclipseStore for persistence.

What you will need

To complete this guide, you will need the following:

Solution

We recommend that you follow the instructions in the next sections and create the application step by step. However, you can go right to the completed example.

Writing the Application

Create an application using the Micronaut Command Line Interface or with Micronaut Launch.

mn create-app example.micronaut.micronautguide \
    --features=properties,eclipsestore,serialization-jackson,validation \
    --build=gradle \
    --lang=java \
    --test=junit
Note
If you don’t specify the --build argument, Gradle with the Kotlin DSL is used as the build tool.
If you don’t specify the --lang argument, Java is used as the language.
If you don’t specify the --test argument, JUnit is used for Java and Kotlin, and Spock is used for Groovy.

The previous command creates a Micronaut application with the default package example.micronaut in a directory named micronautguide.

If you use Micronaut Launch, select Micronaut Application as application type and add properties, eclipsestore, serialization-jackson, and validation features.

Note
If you have an existing Micronaut application and want to add the functionality described here, you can view the dependency and configuration changes from the specified features, and apply those changes to your application.

Dependencies

The eclipsestore feature adds the following dependencies:

build.gradle
annotationProcessor("io.micronaut.eclipsestore:micronaut-eclipsestore-processor")
compileOnly("io.micronaut.eclipsestore:micronaut-eclipsestore-processor")
implementation("io.micronaut.eclipsestore:micronaut-eclipsestore")

Domain object

Create a Fruit class which will be used as the domain object.

java/src/main/java/example/micronaut/Fruit.java

Root Object

Create a FruitContainer POJO which we will be used as the root of our object graph.

java/src/main/java/example/micronaut/FruitContainer.java
package example.micronaut;

import io.micronaut.core.annotation.NonNull;

import java.util.Map;
import java.util.concurrent.ConcurrentHashMap;

public class FruitContainer {

    @NonNull
    private final Map<String, Fruit> fruits = new ConcurrentHashMap<>();

    @NonNull
    public Map<String, Fruit> getFruits() {
        return fruits;
    }
}

Configuration

Add the following snippet to application.properties to configure EclipseStore.

src/main/resources/application.properties
eclipsestore.storage.main.root-class=example.micronaut.FruitContainer
eclipsestore.storage.main.storage-directory=build/fruit-storage

Command object

And a FruitCommand class which will be used as the command object over HTTP.

java/src/main/java/example/micronaut/FruitCommand.java

Repository

Create a repository interface to encapsulate the CRUD actions for Fruit.

java/src/main/java/example/micronaut/FruitRepository.java

Error handling

In the event an attempt is made to create a duplicate fruit, we will catch the exception with a custom class.

java/src/main/java/example/micronaut/FruitDuplicateException.java
package example.micronaut;

public class FruitDuplicateException extends RuntimeException{

    public FruitDuplicateException(String name) {
        super("Fruit '" + name + "' already exists.");
    }
}

A custom ExceptionHandler handles this exception and returns a 400 error with a sensible message.

java/src/main/java/example/micronaut/FruitDuplicateExceptionHandler.java

Repository implementation

Implement the FruitRepository interface.

When an object in your graph changes, you need to persist the object that contains the change. This can be achieved through the StoreParams and StoreReturn annotations.

java/src/main/java/example/micronaut/FruitRepositoryImpl.java

Controller

Create FruitController:

java/src/main/java/example/micronaut/FruitController.java

Test

Create a test that verifies the validation of the FruitCommand POJO when we invoke the FruitRepository interface:

java/src/test/java/example/micronaut/FruitRepositoryTest.java

Create a test that verifies the validation of the FruitCommand POJO when we create a new entity via POST:

java/src/test/java/example/micronaut/FruitValidationControllerTest.java

We will use temporary directories to persist our data under test.

To facilitate this, create a base test class that handles the creation of a temporary folder, and configuring the application.

java/src/test/java/example/micronaut/BaseTest.java
package example.micronaut;

import io.micronaut.test.support.TestPropertyProvider;
import org.junit.jupiter.api.io.TempDir;

import jakarta.validation.constraints.NotNull;
import java.io.File;
import java.util.Collections;
import java.util.Map;
import io.micronaut.core.annotation.NonNull;

abstract class BaseTest implements TestPropertyProvider {

    @TempDir
    static File tempDir;

    @Override
    @NonNull
    public Map<String, String> getProperties() {
        return Collections.singletonMap(
                "microstream.storage.main.storage-directory", tempDir.getAbsolutePath()
        );
    }
}

Create a test that validates FruitDuplicateExceptionHandler.

java/src/test/java/example/micronaut/FruitDuplicationExceptionHandlerTest.java

Add a Micronaut declarative HTTP Client to src/test to ease the testing of the application’s API.

java/src/test/java/example/micronaut/FruitClient.java
package example.micronaut;

import io.micronaut.core.annotation.NonNull;
import io.micronaut.http.HttpResponse;
import io.micronaut.http.HttpStatus;
import io.micronaut.http.annotation.Body;
import io.micronaut.http.annotation.Delete;
import io.micronaut.http.annotation.Get;
import io.micronaut.http.annotation.PathVariable;
import io.micronaut.http.annotation.Post;
import io.micronaut.http.annotation.Put;
import io.micronaut.http.client.annotation.Client;

import jakarta.validation.Valid;
import jakarta.validation.constraints.NotBlank;
import jakarta.validation.constraints.NotNull;
import java.util.Optional;

@Client("/fruits")
interface FruitClient {

    @Get
    Iterable<Fruit> list();

    @Get("/{name}")
    Optional<Fruit> find(@NonNull @NotBlank @PathVariable String name);

    @Post
    HttpResponse<Fruit> create(@NonNull @NotNull @Valid @Body FruitCommand fruit);

    @Put
    Optional<Fruit> update(@NonNull @NotNull @Valid @Body FruitCommand fruit);

    @NonNull
    @Delete
    HttpStatus delete(@NonNull @Valid @Body FruitCommand fruit);
}

And finally, create a test that checks the controller works against EclipseStore correctly:

java/src/test/java/example/micronaut/FruitControllerTest.java

Testing the Application

To run the tests:

./gradlew test

Then open build/reports/tests/test/index.html in a browser to see the results.

Running the Application

To run the application, use the ./gradlew run command, which starts the application on port 8080.

Create a new fruit
curl -i -d '{"name":"Pear"}' \
     -H "Content-Type: application/json" \
     -X POST http://localhost:8080/fruits
Output
HTTP/1.1 201 Created
date: Thu, 12 May 2022 13:45:56 GMT
Content-Type: application/json
content-length: 16
connection: keep-alive

{"name":"Pear"}
Get a list of all fruits
curl -i localhost:8080/fruits
Output
HTTP/1.1 200 OK
date: Thu, 12 May 2022 13:46:54 GMT
Content-Type: application/json
content-length: 70
connection: keep-alive

[{"name":"Pear"}]

EclipseStore REST and GUI

During development, it is often useful to see the data being saved by EclipseStore. Micronaut EclipseStore integration helps you do that.

Add the following dependency:

build.gradle
developmentOnly("io.micronaut.eclipsestore:micronaut-eclipsestore-rest")

The above dependency provides several JSON endpoints which expose the contents of the EclipseStore storage.

We need to enable Micronaut EclipseStore REST endpoints via configuration. For security, they are disabled by default. We will enable them only in the dev environment.

Dev default environment

Modify Application to use dev as a default environment.

java/src/main/java/example/micronaut/Application.java
package example.micronaut;

import io.micronaut.context.ApplicationContextBuilder;
import io.micronaut.context.ApplicationContextConfigurer;
import io.micronaut.context.annotation.ContextConfigurer;
import io.micronaut.context.env.Environment;
import io.micronaut.core.annotation.NonNull;
import io.micronaut.runtime.Micronaut;

public class Application {
    @ContextConfigurer
    public static class DefaultEnvironmentConfigurer implements ApplicationContextConfigurer {
        @Override
        public void configure(@NonNull ApplicationContextBuilder builder) {
            builder.defaultEnvironments(Environment.DEVELOPMENT);
        }
    }

    public static void main(String[] args) {
        Micronaut.run(Application.class, args);
    }
}

Development Environment Configuration

Create src/main/resources/application-dev.properties. The Micronaut framework applies this configuration file only for the dev environment.

src/main/resources/application-dev.properties
eclipsestore.rest.enabled=true

EclipseStore Client GUI

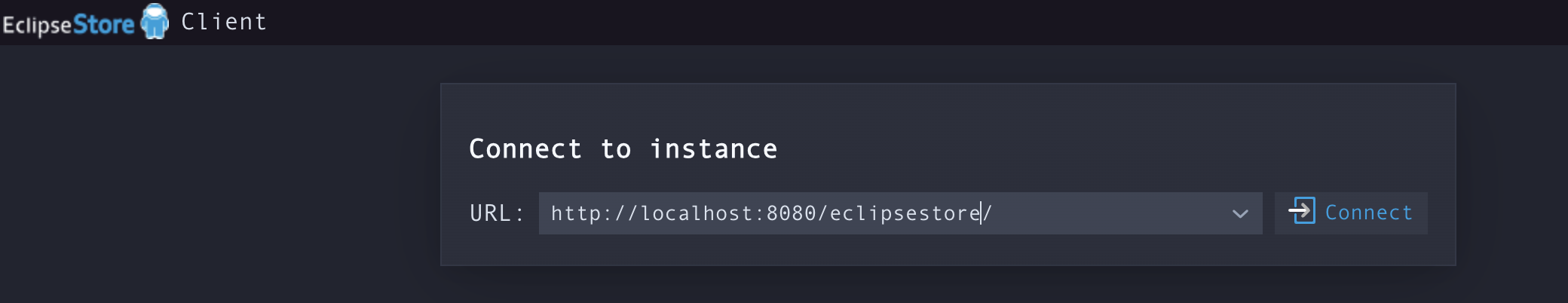

Run the client and connect to the EclipseStore REST API exposed by the Micronaut application:

eclipsestore rest 1

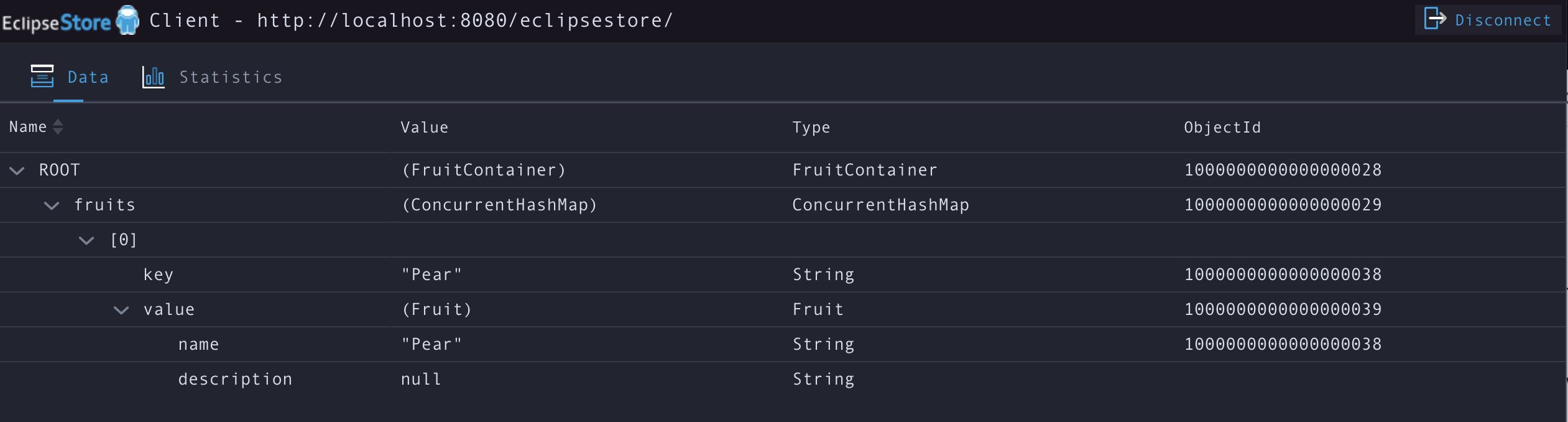

You can visualize the data you saved via curl.

eclipsestore rest 2

Next Steps

Explore more features with Micronaut Guides.
